[Solved]: Turing Machine for strings without bbb

Problem Detail:

I am trying to generate a transition graph for a turing machine that accepts the languages of all strings that do not contain the substring $bbb$ with the input alphabet $\Sigma = \{a, b\}$.

When I implement this graph in JFLAP, I'm receiving an error that there are transitions out of final states. Is it OK to construct a transition graph like this, or is it considered bad practice? If so, can you help me understand the correct way to construct the transition graph?

Asked By : Rusty

Answered By : jonaprieto

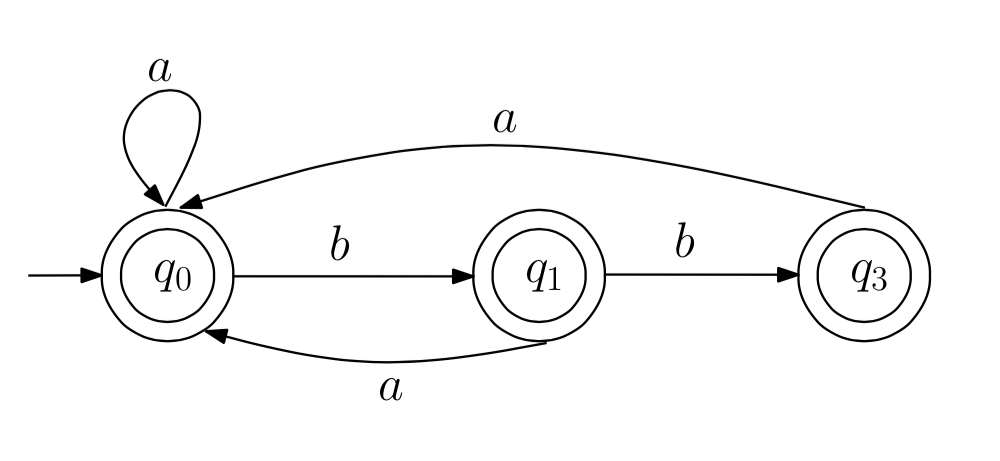

The state $q_3$ is not necessary, because you couldn't have string with the pattern $bbb$ inside of them. So, just delete it. The next automaton accepts your language requirement.

Hope it helps

Best Answer from StackOverflow

Question Source : http://cs.stackexchange.com/questions/34035
